Valves and valve blocks HYDRONT
-
Hydrolock series K1Г- Nominal flow rate from 30 l / min to 60 l / min
- Thermal valve version
- Ambient temperature: -40 ° ... + 50 ° С
- Working fluid temperature (NBR seals): -40 ° ... + 80 ° С
- Viscosity of working fluid: 12-1300
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 200-350 bar): 11
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 140-200 bar): 12
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of up to 140 bar): 14
-
Сheck valves series K1O- Valve type: reverse
- Nominal flow rate: 45 l / min to 350 l / min
- Ports: G 1/2 BSPP and G 1 1/2 BSPP
- Standard version
- Check valve opening pressure: 0.5 bar and 5 bar
- Ambient temperature: -40 ° ... + 50 ° С
- Working fluid temperature (NBR seals): -40 ° ... + 80 ° С
- Viscosity of working fluid: 12-1300
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 200-350 bar): 11
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 140-200 bar): 12
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of up to 140 bar): 14
-
Brake valves series K1T- Rated flow: 35, 90 and 140 l / min
- Maximum pressure: 350 bar
- Setting range: 0-350 bar (standard setting 350 bar)
- Ambient temperature: -40 ° ... + 50 ° С
- Working fluid temperature (NBR seals): -40 ° ... + 80 ° С
- Viscosity of working fluid: 12-1300
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 200-350 bar): 11
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 140-200 bar): 12
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of up to 140 bar): 14
-

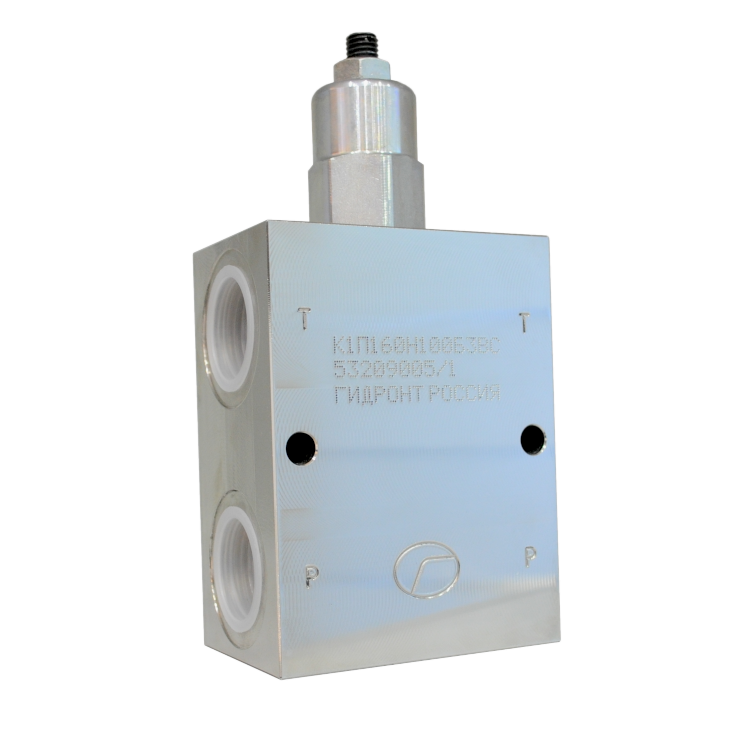

Safety valves series K1П- Rated flow: 80 and 160 l / min
- Maximum pressure: 350 bar
- Type: safety
- Direct acting valve
- Pipe (threaded) mounting version
- Ambient temperature: -40 ° ... + 50 ° С
- Working fluid temperature (NBR seals): -40 ° ... + 80 ° С
- Viscosity of working fluid: 12-1300
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 200-350 bar): 11
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of 140-200 bar): 12
- Maximum pollution level in accordance with GOST 17216 (no coarser, at an operating pressure of up to 140 bar): 14
